  • 80-40-20 meter fan dipole with 1:1 balun Flex-Weave

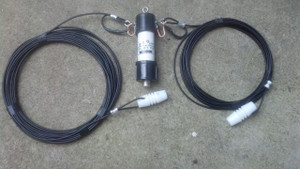

HF 3 band Fan dipole multiband antenna 80-40-20 meters with 1:1 Balun Flex-Weave

$179.98
SKU:
3band80/40/20fandipolewith balunfw
Brand:
Weight:
8.00 LBS
Rating:
5 Stars
Shipping:
Calculated at checkout
Quantity:

Product Description

The 3 element fan dipole works very well at covering all the bands 80-6 meters, using a tuner onthe non resonant bands.


We cut the element for the lower frequency and let it serve double duty at the odd harmonic, thus enabling greater band coverage. ie. 80/30, 40/15 meters.

You can pick your resonant frequency on each of the 3 elements 80/40/20.

Antenna will be custom made for you.

Since this antenna has no exposed metal wire static charges can not build up thus reducing noise by 6dB over antennas constructed of exposed wire.


The W2AU is the preferred Balun of Amateurs worldwide.

W2AU’s operate at a low VSWR from 1.8 to 40 mHz, and handle powers up to 2 KW PEP (at SWRs of less than 3:1).

W2AU Baluns are transformer designs with ferrite cores to provide 95% minimum coupling efficiency.

Each has a built-in lightning arrestor, hang up hook, and 600 lbs of pull-apart strength in a weatherized, rugged package using only stainless steel hardware and quality materials.

The 1:1 matches 50(75) ohms unbalanced coax to 50(75) balanced dipoles.



The dipole is constructed using top quality, FLEX-WEAVE TM is a sophisticated hybrid aerial wire. Its new innovation provides rope lay construction strength and high flexibility. It can be tied in knots to insulators and untied for repeated use. FLEX-WEAVE TM is sometimes referred to as "wire rope" or "jewelers rope". It will not kink or rust out as will copper-clad wire. This flexible wire has also been used for rapid deployment, spool-out, military aerials.

 FLEX-WEAVE TM  #14 (168 strands of #36 wire).  It is excellent for quads, dipoles, long wires, and rapid deployment (spooled-out) antennas. Highly UV resistant PVC jacket.

 FLEX-WEAVE TM is the "Cadillac of aerial wire". It has been written about in all amateur radio publications since its introduction in 1989. This revolutionary product has been used by thousands of hams, commercial firms, and government agencies.

The insulation has superior abrasion resistance for running through trees and is UV and weather resistant for use on the seacoast or in other harsh environments. They'll stand up to acid rain, high wind loads, and high snow and ice loads


This antenna can be hung either in a Flat-Top or Inverted V configuration.

Total length 138'.

Legal Limit.

Add your 50 Ohm coaxial feed line, suspension rope and go.

NOTE *** A wide range tuner can be used to tune this antenna to 160-6 meters


Product Reviews

Write your own product review

  1. Well built antenna out of good materials 5 Star Review

    Posted by on 9th Jan 2016

    I purchased the antenna and it arrived in short order. I had one question which was answered very promptly. It's a great built antenna made of top notch stuff. You will happy you got one. Thanks for the great job! He cuts it to your frequencies and he leaves the the ends not crimped so you can make final adjustments to get the best SWR with your installation. Very nice...


  2. Muti-band Wonder 5 Star Review

    Posted by on 12th Sep 2014

    Well, I figured I would try and get all the bands i use on one balun, I was pretty suspicious but after i purchased some pex to use as spreaders to keep the wire distance from dipole to dipole got it all laid out on the ground, put it up in the air, and my goodness it works great no difference over a single dipole, I have been getting great reviews from all over the world.
